Highly versatile bench top filling and capping machine
All Electric Version Available
Modular Design, optional extras
Same Control Systems as Larger Machines
5.7" Color Touchscreen HMI

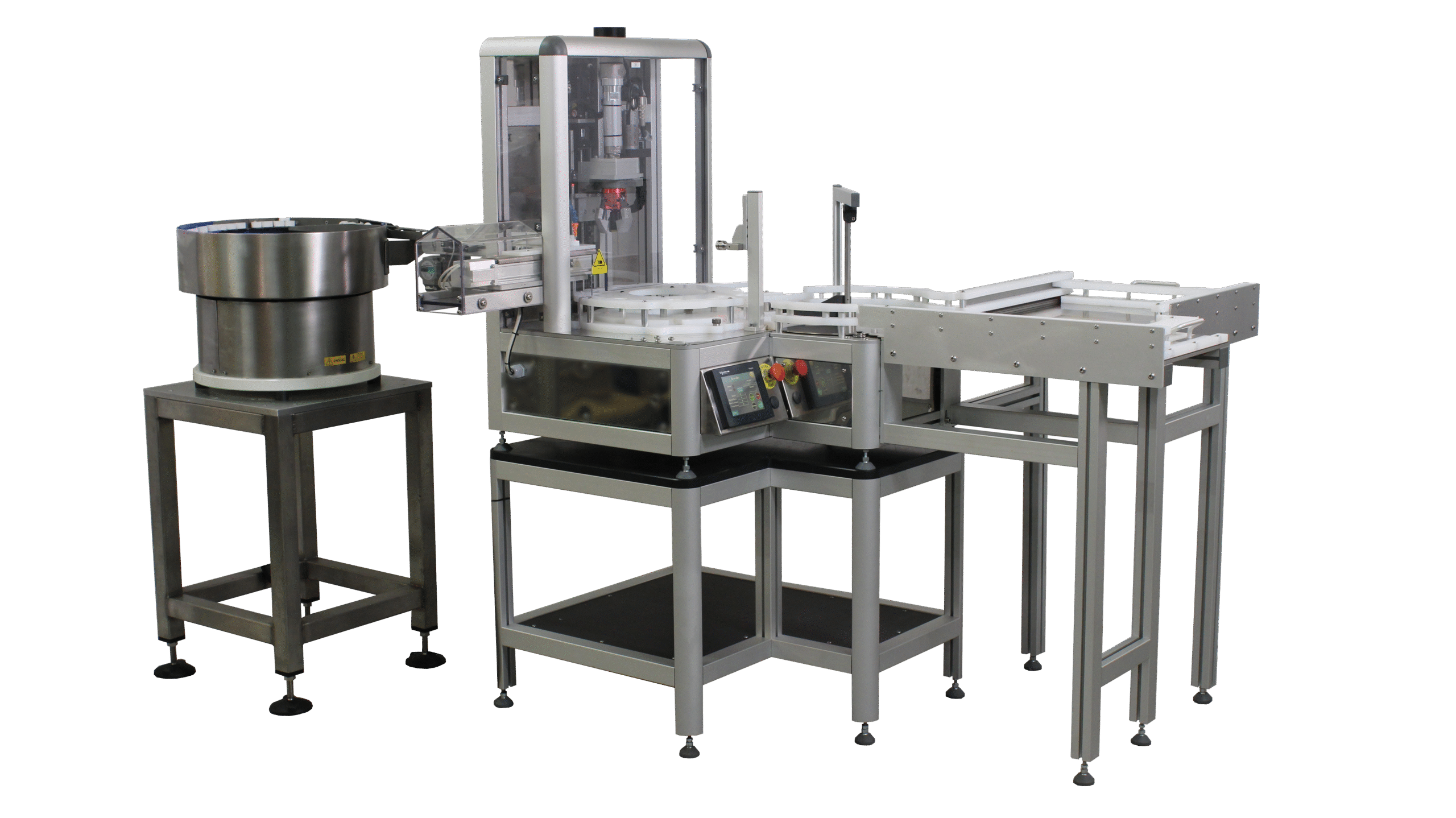

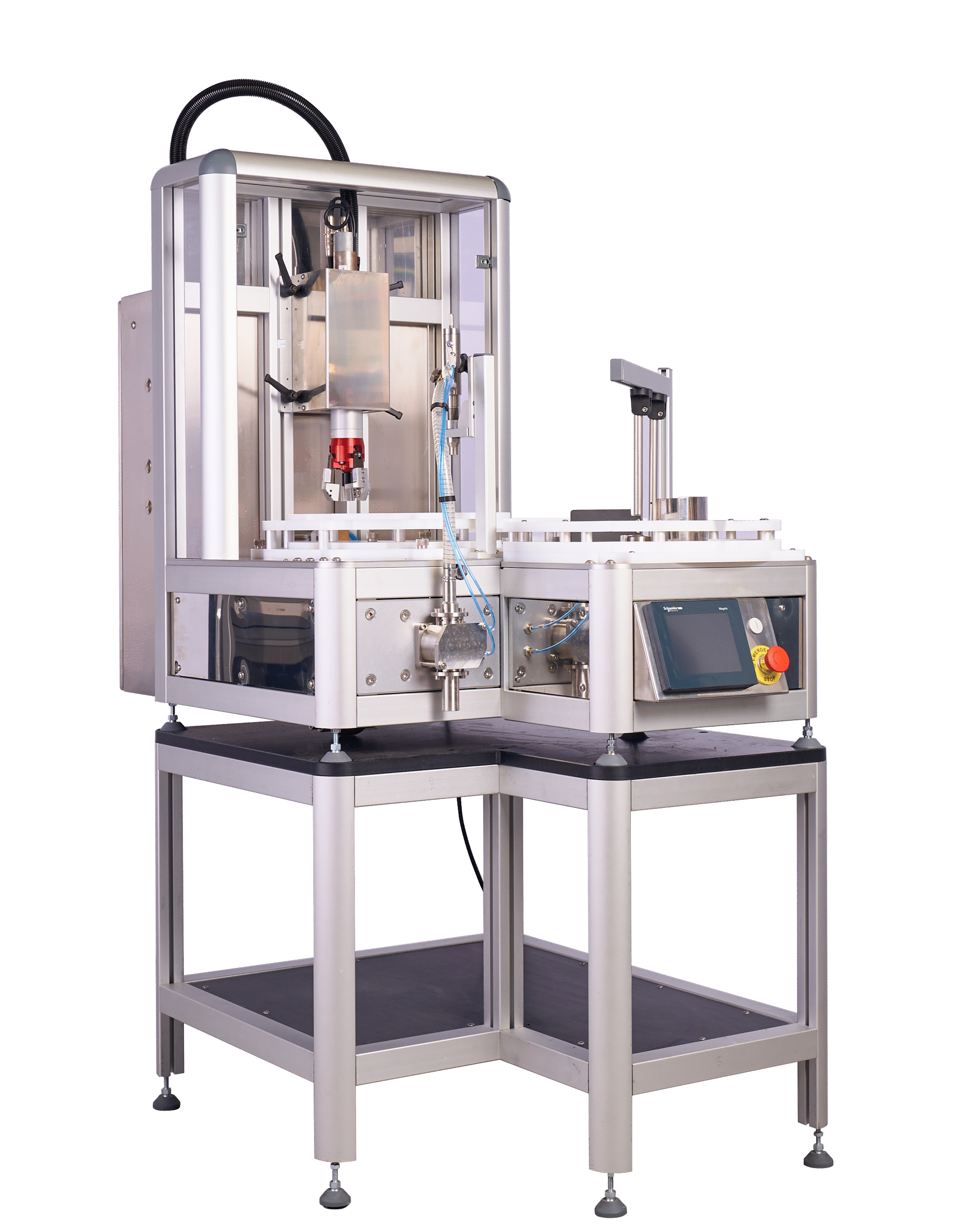

With so many optional features taking the Micro from a basic bench top capper all the way to a fully automatic system, it is no surprise that the Micro-Mono was an instant success and continues as Cap Coders best selling machine.
Modular in design, ease of use, compact size and immense flexibility make the Micro-Mono at home anywhere from small laboratories and start-up companies to large scale production facilities. Use of quick-release tooling on all the product change parts makes the Micro ideal for those that complete smaller batches with frequent product change over.
Automatic Starwheel-based Capping
Conveyor-Based Machine, Simple to Install.
Change Part Starwheels for Wide Range of Products.
Ideal For All Industries.
Speed and Torque Adjustable for Accurate Repeatable Capping.
25ml to 5Liitres.

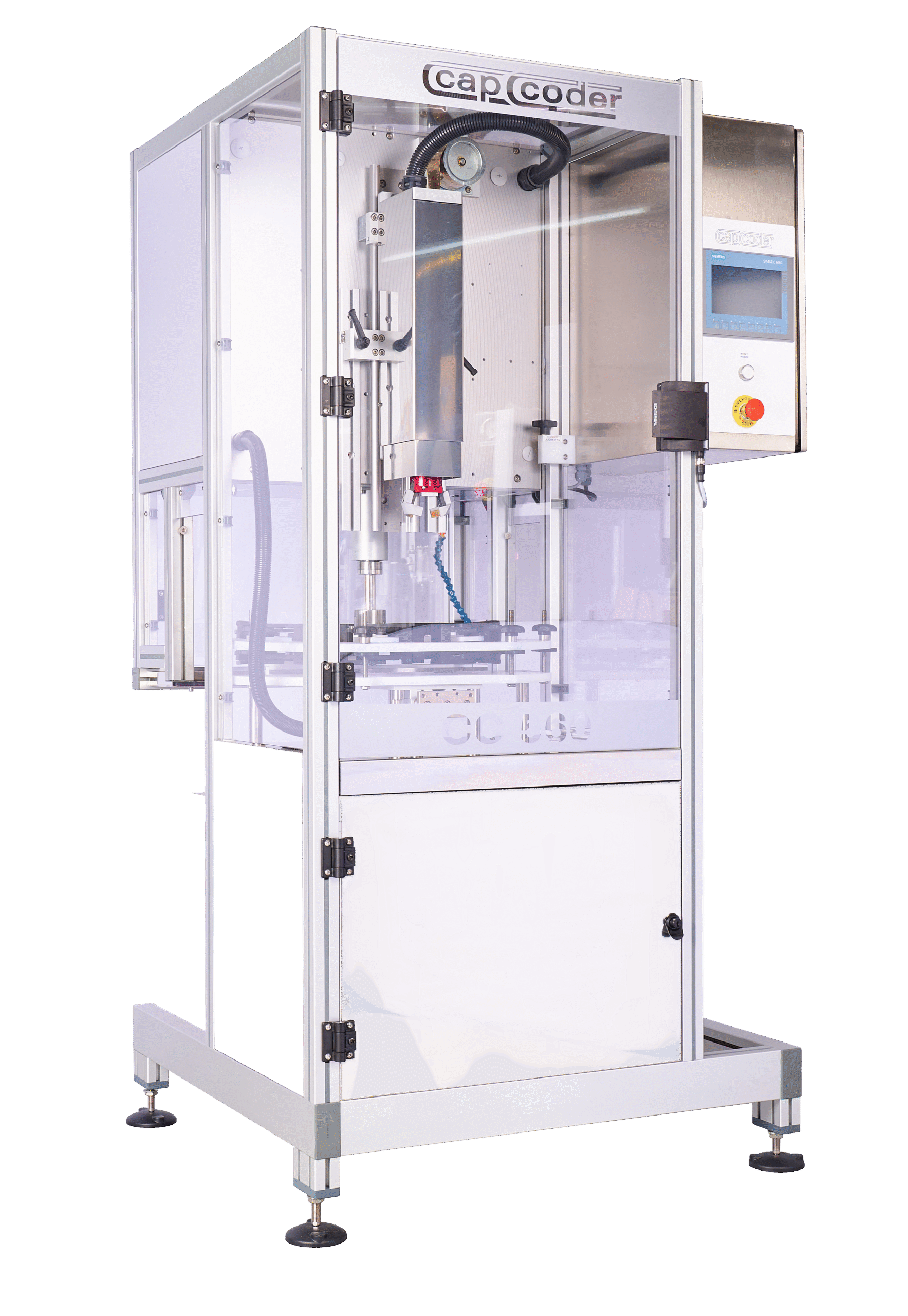

With a large Starwheel offering multiple stations, the CC560 can deal with applications such as filling, roll-on ball insertion, and capping in one sequence - making the CC560 capable of dealing with an incredibly wide range of product styles in one machine.
Automatic trigger-spray applications are handled with ease by the CC560, making it one of the most versatile machines in the Cap Coder range.
Capping Workhorse, Positioned Over an Existing Conveyor
In-Line Machine, with a Simple Gating System
Ideal for All Applications
Easily Adjustable Capping Height & Part change
From 25ml to 1 Litre
The CC570 is the ideal machine for applications where many different products and frequent product change over occur, making it immensely popular with contract packers and cosmetic companies.
With its quick-release tooling, product changeover can take as little as 3 minutes.The choice of an optional extra linear-servo rise and fall head - where the capping head automatically moves to the correct height set for the product selected in the HMI by the operator - minimises set-up time and ensures operator errors are reduced to a minimum.
Multi-Function Bespoke Machine - Each Tailored and Designed to an Individual Specification
Servo-driven Carousel, and Choice of Gear or Peristaltic Pump.
Flagship Model with Industry Leading Technology.
Features Such as; Load-Cell Weighing, Liquid Detection Sensors, Ultrasonic Sensors
Positive Rejection System
From 5ml to 1000ml
Production Rate 40-60/ per min.

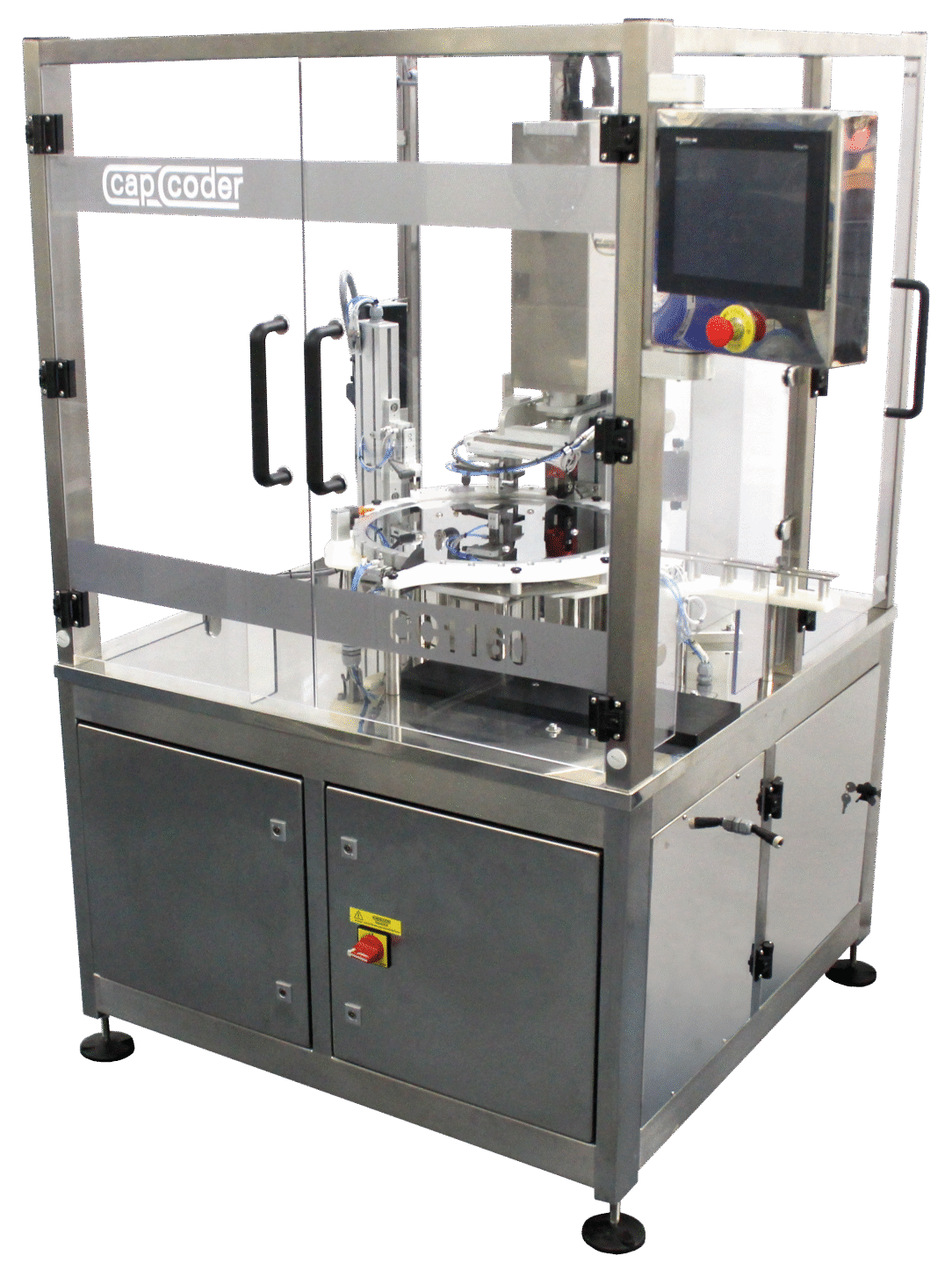

Cap Coders flagship CC1160 has evolved since the mid 90’s to become one of the most technologically advanced Monobloc system in the market, and certainly THE most in its price bracket.
No two CC1160’s are ever the same as each machine is designed bespoke to the needs of the customer. With an in-house design and controls team, here at Cap Coder we can design and program in any function that is required.
Bench-Top Cap Tightening Machine, for a wide range of products
Designed for a Wide Range of Products
Consistent, Repeatably-Applied Torque
Powered Infeed & Clamping System

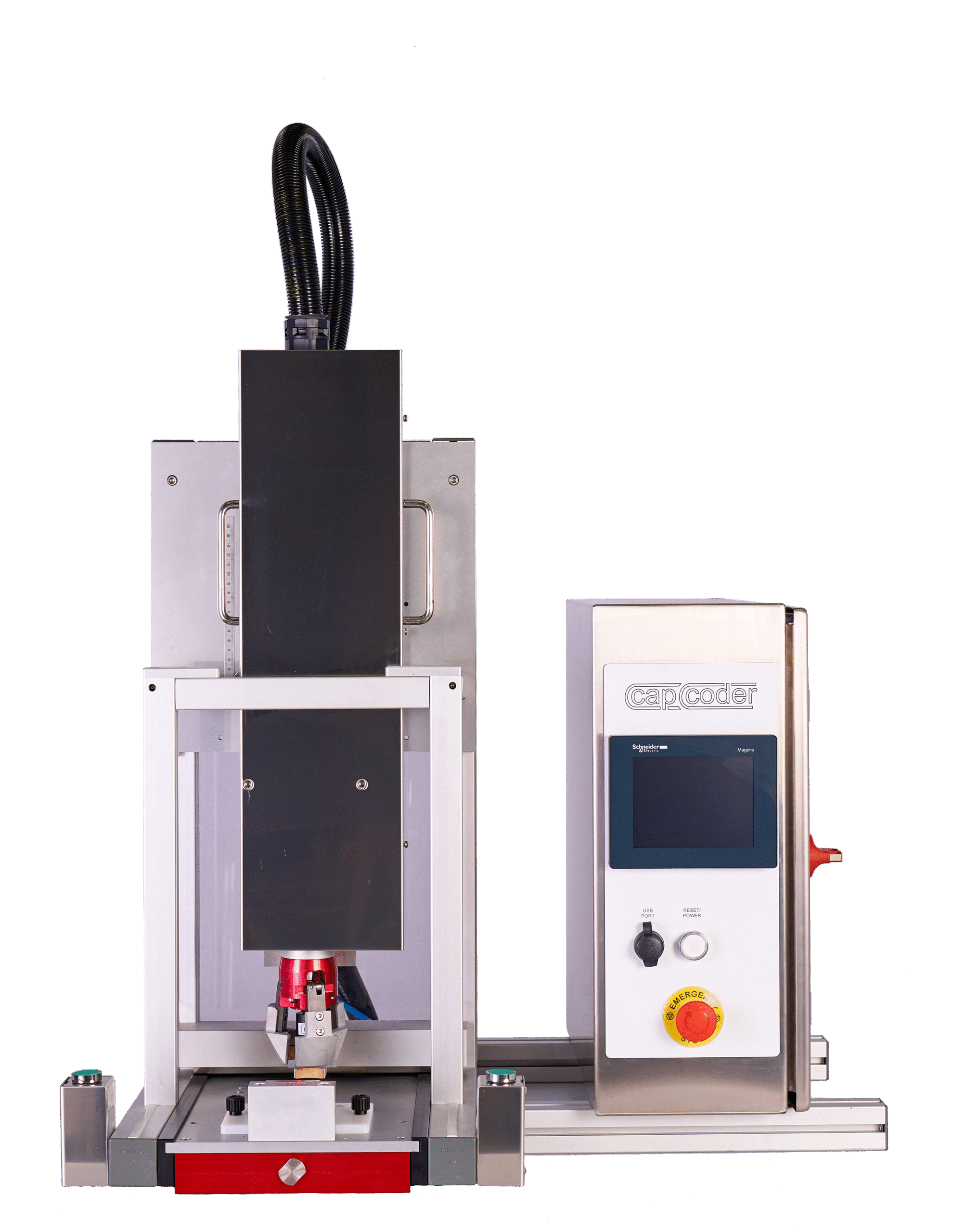

The CC1440 machine is a bench top cap tightening machine that was designed for start-up companies needing to eliminate RSI within their production areas.
Often considered as one of the best ‘Start-up’ units for customers purchasing their first machine, The CC1440 is simple to use and set up, and suitable for small batch work and/or experimental work, where the torque accuracy and consistency is more important than the production rate.
Fully automatic, fully-featured, scaled-down Monobloc
Single or Twin-Head - Filling and Capping
Fully Featured, Scaled Down Monobloc.
Unrivalled Features Per Footprint, 690 x 810mm.
Completely Modular Design.

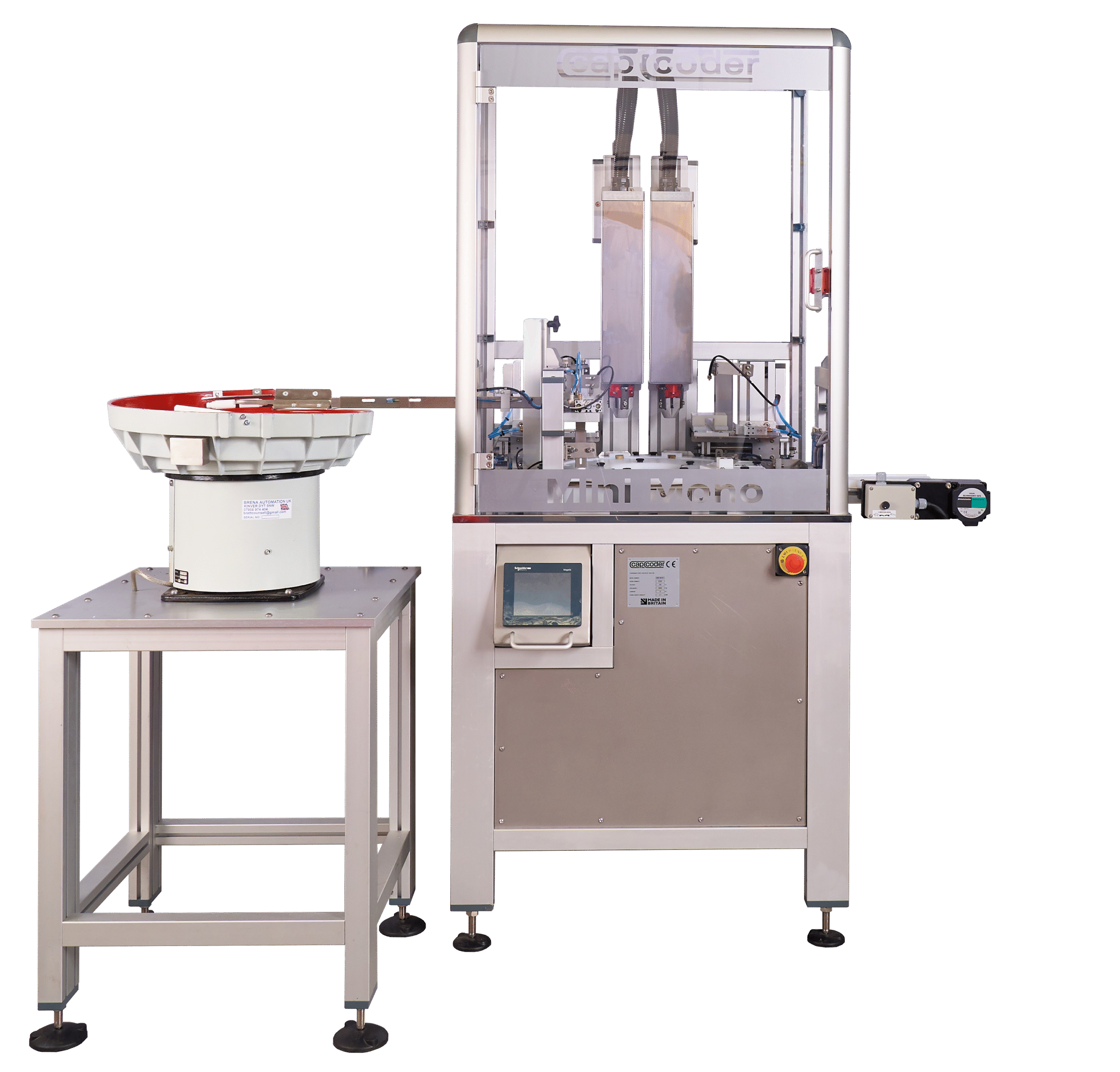

The Mini-Mono was designed specifically for situations where space is at a premium or where access is limited. With the capability of fitting through a standard doorway aperture and a maximum output of 40 units a minute, the Mini-Mono is ideally suited for small laboratories and main production lines alike.
The Mini-Mono has a feature set that well exceeds its compact dimensions and with functions such as a reject station, liquid and cap detection sensors, it often comes in more heavily featured than its larger siblings.
Starwheel-Based Filler - Simple to operate
Nozzles are fixed in a set position – again minimising any potential set-up error
Servo controlled linear drive raises and lowers the nozzles allowing for slow rising fills
Simply select the product recipe from the HMI and the nozzles automatically adjust height
Uses up to four gear heads or peristaltic filling heads as standard
Can accommodate bottles from 10ml to 5 litre.
The CC560 Filler was designed specifically for companies that wanted to minimise the potential for set-up error on product change overs by using a starwheel and fence guide system. Operators simply change the starwheel and fence (approximately 5 minutes), select the correct recipe for the next product from the HMI and the machine is now ready to accept the new containers.

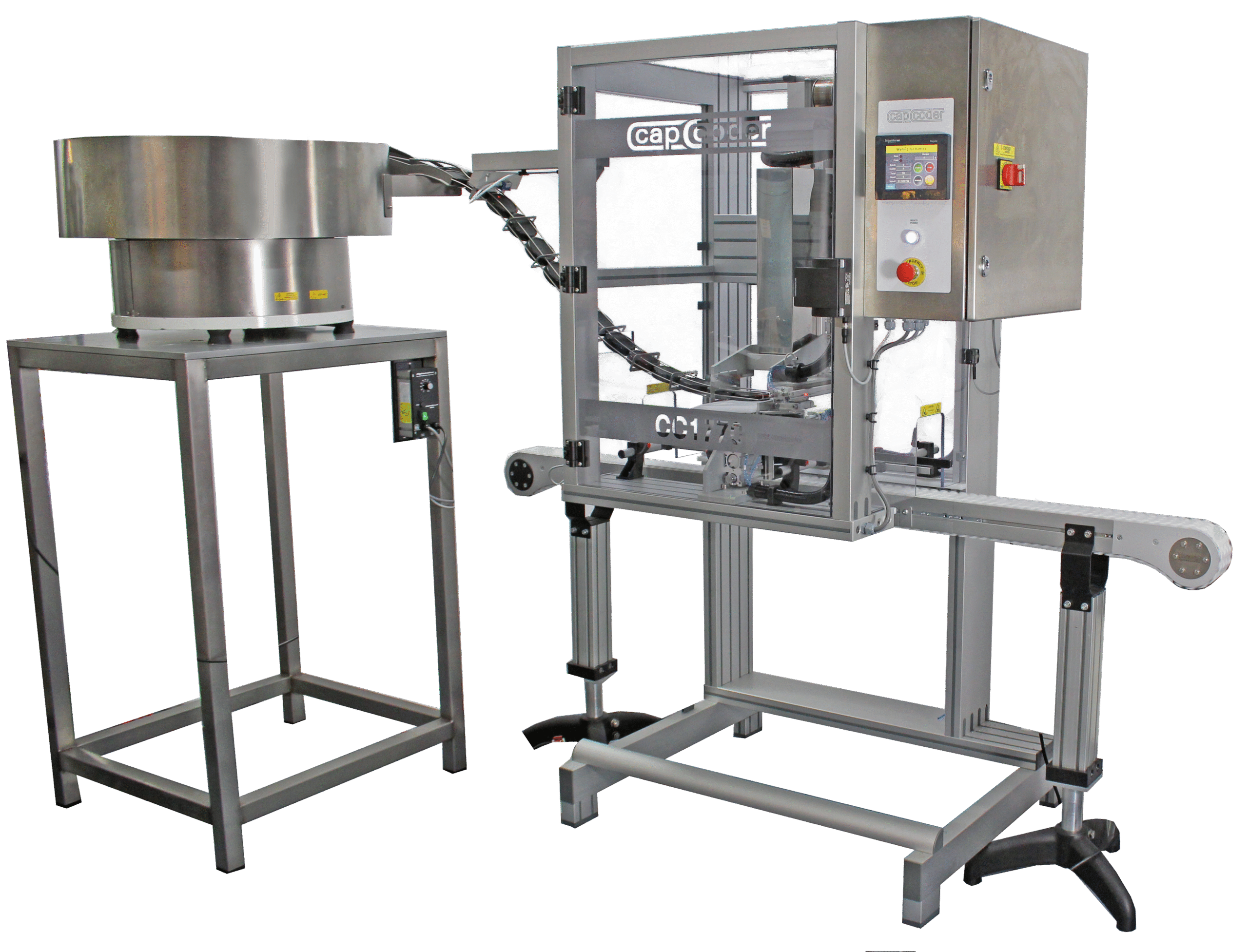

Automatic Cap Tightening Machine - For Bulk Products
Large aperture machine designed for containers of up to 25 Litres
Can be set-up as a filling machine or capping machine
Fully-automatic or semi-automatic set up
Heavy-duty applied cap torques of up to 15Nm
Can accept a conveyor width of up to 370mm
Easily integrates into existing lines with minimal disruption
The CC1770 is Cap Coders answer to bulk products up to 25 litres. With a large aperture into the machine and a heavy duty gating system the machine is ideally suited to containers of considerable size and weight.Whether the CC1770 is being used as a filling machine or a capping machine it works on the same simple gating mechanism and quick change tooling make the machine well suited to those who would like to run several products through the machine. Normally supplied as a fully-automatic machine, it can also be supplied in a semi-automatic set-up for those that do not have the necessity for automatic cap placement.
DeltaFill - a volumetric bench-top filler that is incredibly simple to calibrate,
360 Degree swivel HMI
Full servo control
Any size gear head
Open nozzle or positive shut off
The DeltaFill works on the principle of volumetric filling but instead of the traditional method of selecting a set number of pulses to obtain the desired fill level, you simply enter into the HMI the target fill volume, eg. 120ml and the DeltaFill will calculate the number of pulses necessary for that volume.
To calibrate the filler, the operator simply weighs/measures the dose filled and inputs that figure into the calibration screen. Press calibrate and the DeltaFill will automatically make the necessary offsets for an accurate fill. The DeltaFill can work in one shot mode, where a dose is only dispensed after a signal, either from a footswitch or pressing the dose button on the HMI, or can work in continuous mode where it will then dose and then dose again after a pre-set time interval which is adjustable by the operator, eg every 1.0 second.
BetaFill brings a large technological leap, using more up to date technology such as touchscreen HMI and more accurate stepper motors.
Stepper motor controlled peristaltic head
3 inch touchscreen HMI
Stackable pump heads (two pump heads driven from one motor) or:Master unit can control up to 4 slave units, each with individual stepper drives
Following on from the great success of the AlphaFill, its successor, the BetaFill brings a large technological leap, using more up to date technology such as touchscreen HMI and more accurate stepper motors. Aimed at those that need the cleanliness that comes with peristaltic filling but do not necessarily need the tighter accuracy filling that comes with more high-end peristaltic pumps.
